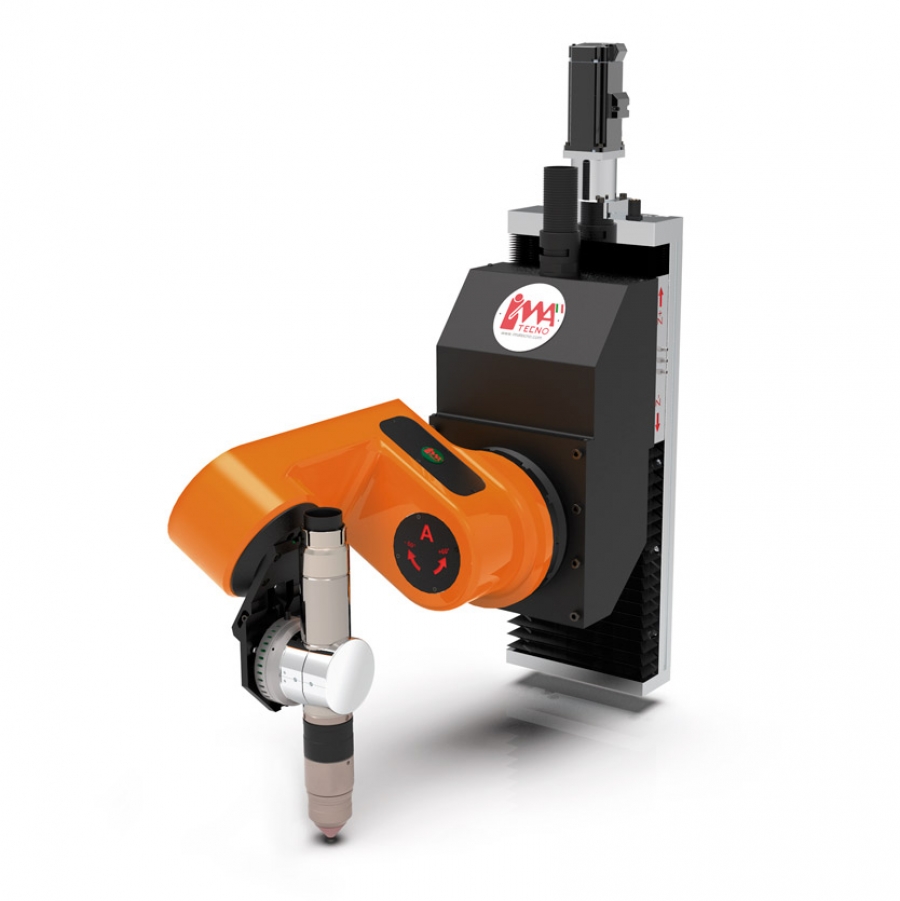

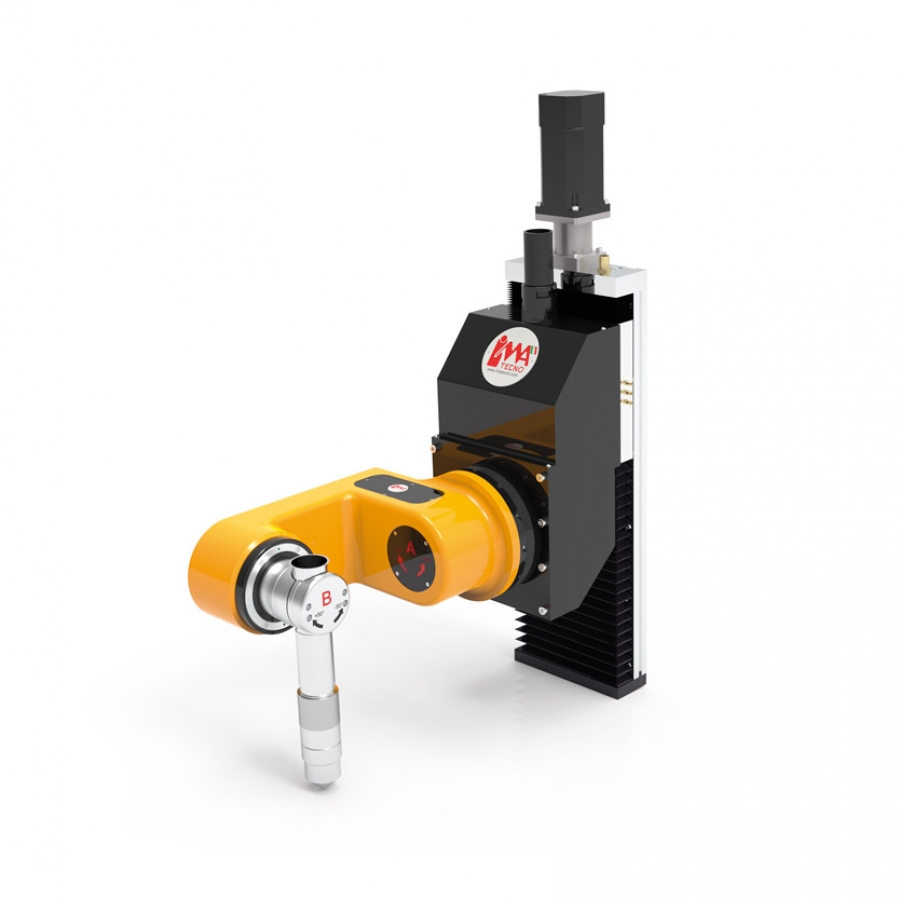

Bevel Heads
The Ima Tecno Bevel Heads, also coupled with a Z axis slide, are designed to implement 2 axes to the cartesium machines in Plasma, Laser, Oxicutting and Waterjet applications.
Our product line is built to ensure maximum strength and precision.
Ima Tecno is able to satisfy the personalization needs of its products while guaranteeing a high quality level.
Main Info for Bevel Heads
Bevel Heads add A and B axis rotation to standard 3-axis machines.
The heads can be installed both vertically and horizontally.
The strength of our heads is the possibility of using a wide range of servo motors chosen by the customer (Bosch, Delta, Mitsubishi, Siemens, Fanuc, Kollmorgen; Beckhoff, Yashkawa, Heidenhain, Lenze, Panasonic, Hiwin and others. )
The Z axis slide can have, optionally, a stroke from 250 to 500 mm. The slide, designed for easy assembly in the machine, is made in a sturdy way and protected with metal bellows. it is also equipped with zeroing and limit switch sensors.
